• Metal Stamping

    details


    Cole Tooling & Stamping broad range of equipment and experience in complex die stampings enable us to produce many different sizes and types of stampings. We are equipped to handle even your heaviest materials.

    • Presses from 200 ton to 1000 ton
    • Run progressive, hand and tong, transfer, blanking dies
    • .020" to .380" Material Thickness
    • HSLA, Stainless, Nickel, Titanium, Tubing
    • Max Coil width 53"
    • Complete prototyping and die building capabilities.
    • Deep draw operations
    • Specialty stampings
    • Robotic Welding
    • Assembly
    • Highly experienced and qualified staff
    • On-site parts washer
    • Press bed sizes up to 61" x 144"

  • Engineering

    details


    Our Engineering Department is equipped with SolidWorks (CAD Software) and GibbsCAM (CAM Software). We have the ability to open STEP, Parasolid, IGS, .dxf, .dwg, PRO-E, and Solid Edge.

    • Services provided;
    • Prototype parts
    • Reverse engineer & manufacture replacement components
    • Engineering changes
    • Die repair
    • Part development



    Design & build
    • Progressive die
    • Line dies
    • Transfer dies

      •

      We track all tooling projects internally using an in-depth timeline and PPAP process, to ensure outcome delivery and customer satisfaction. All die designs are completed in 3D.

  • Quality

    details


    Quality has been the focus of Cole Tool & Die since Floyd Cole started the company. That focus has continues through three generations of Cole family ownership. Certified ISO-9002 in 1995 and QS-9000 in 1999 and now currently certified in ISO/TS16929.

    Cole Tooling & Stamping is lead through a cross-functional team by the Quality Assurance Manager which strives to meet or exceed or customer's expectations. The Quality department is staffed with a QAM, QE, and QI's which is constantly monitoring the QMS to continually improve our internal processes.

    • PPAP Capabilities any level
    • Statistical monitoring

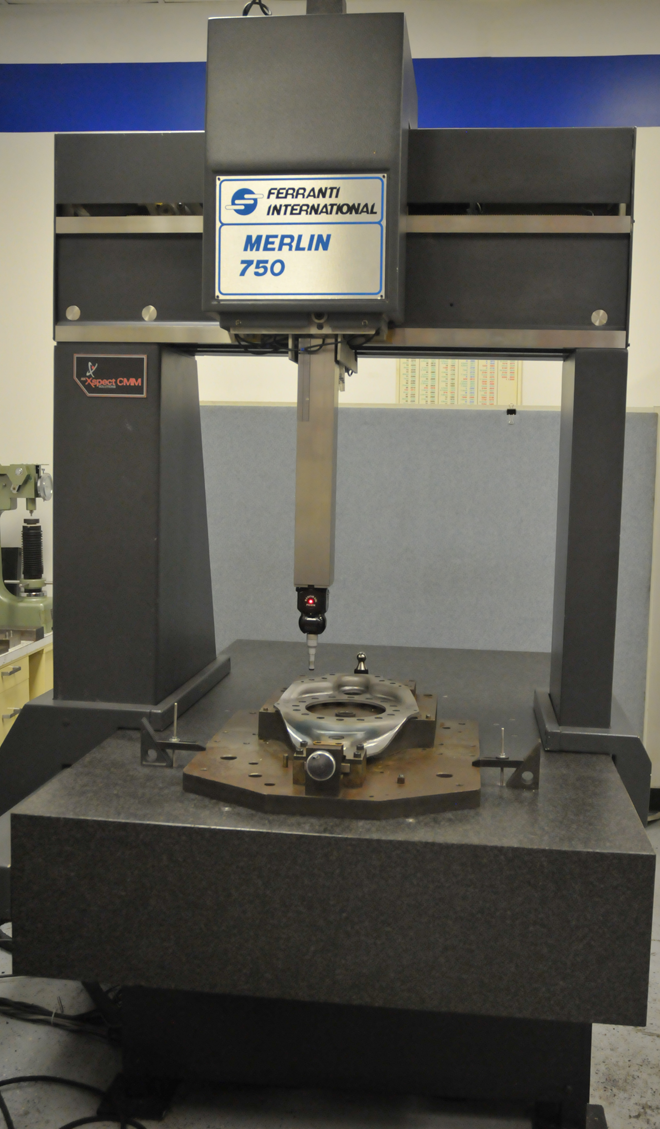

    • CMM - Size 750x1000x750
    • Material Hardness testing
    • Auditing of internal & supplier processes

  • Robotic Welding

    details


    Cole has the abilty to make all your robotic welding requirements, as well as spot welding.
    Welding incldues: Tig & Mig

  • Capabilities & Core Competence

    details


      Cole Tooling & Stamping specializes in all sizes of heavy metal stampings and assemblies. With up to date technology and knowledge we are able to meet our customers' needs at a cost effective price.

      With onsite Engineering and experienced Toolmakers we are able to maintain dies in house and continue to produce a good quality product and on time deliveries.

      Cole operates 8 presses ranging from 200 to 1,000 tons.

      Currently, we serve the Automotive, Heavy Trucking, and Construction industries.


    • Services:
    • Blank Dies
    • Hand Transfer Dies
    • Automated Transfer Dies
    • Progressive Dies
    • Deep Draw
    • Prototyping
    • Machining/ Production Machining
    • Part washing
    • Tig & Wig Welding
    • Robotic Welding
    • Riveting
    • Assembly
    • Tooling/Engineering
    • Programmable DCC
    • CAD layout capability
    • Statistical capablities

    • Stamping Presses
    • 1,000 Ton Clearing Press
    • 800 Ton Verson Press
    • 800 Ton Bliss Press
    • 550 Ton Sutherland Press
    • 400 Ton Verson Press
    • 300 Ton Verson Press
    • 200 Ton Bliss Press
    • 200 Ton Minister Press
    • 200 Ton Niagara SS Press


    • Materials
      • 0.020" to 0.50" Material Thickness and Max coil width of 53.3701"
    • Types of Material:
    • HSLA
    • Stainless
    • Nickel
    • Titanium
    • Tubing

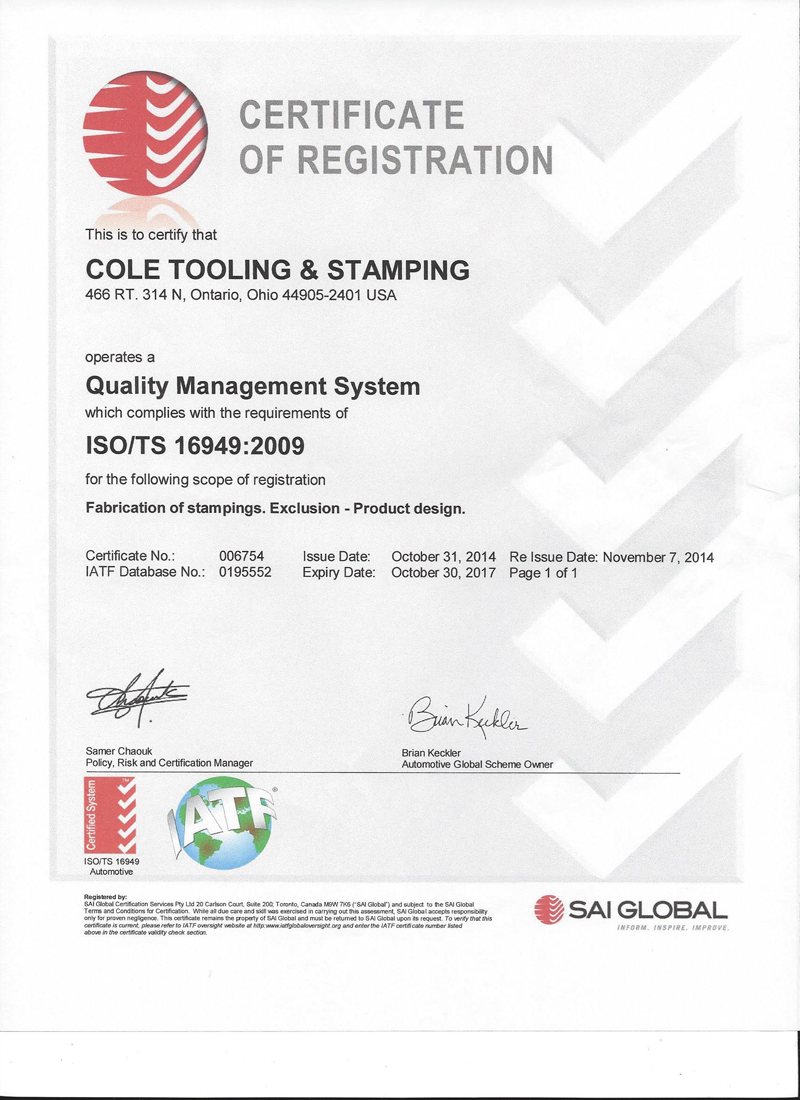

  • ISO/TS 16949:2009 - Third Edition

    details




    Download PDF Scan of the Certificate HERE

  • Machining & Tooling

    details




    Machining

    We offer a wide range of Machining Services from production machining to manufacturing replacement die components. We have CNC Equipment and conventional equipment to meet all your requirements from long-term to short-term machining to surface machining.

    CNC Mills
    CNC Lathe
    Wire (EOM)

    Tooling

    Our Tooling Department is staffed with experienced Stat Certified Journeyman Tool & Die makers. We have the ability to build new tooling, prototype tooling, and engineering changes to existing tooling.
